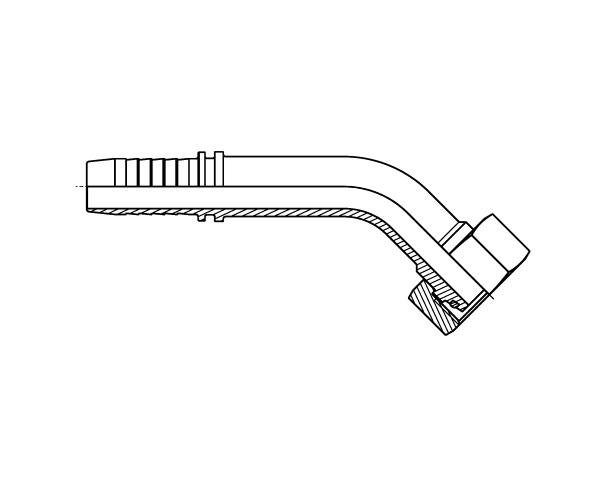

Metric O-ring Light (L) Female Swivel – Hosetail 45
| Dash | Volz | Description | DIN |
|---|---|---|---|
| M12x1.5-8 | 207989 | 06Lf sw ORING X 1/2 Hose insert 45 | DN12 |
| M14x1.5-4 | 200686 | 08Lf sw ORING X 1/4 Hose insert 45 | DN06 |
| M16x1.5-4 | 208001 | 10Lf sw ORING X 1/4 Hose insert 45 | DN06 |
| M16x1.5-6 | 207972 | 10Lf sw ORING X 3/8 Hose insert 45 | DN10 |
| M16x1.5-5 | 200655 | 10Lf sw ORING X 5/16 Hose insert 45 | DN08 |
| M18x1.5-6 | 202335 | 12Lf sw ORING X 3/8 Hose insert 45 | DN10 |
| M18x1.5-5 | 202334 | 12Lf sw ORING X 5/16 Hose insert 45 | DN08 |
| M22x1.5-8 | 202340 | 15Lf sw ORING X 1/2 Hose insert 45 | DN12 |
| M22x1.5-6 | 202339 | 15Lf sw ORING X 3/8 Hose insert 45 | DN10 |
| M26x1.5-10 | 202342 | 18Lf sw ORING X 5/8 Hose insert 45 | DN16 |
| M30x2-12 | 202344 | 22Lf sw ORING X 3/4 Hose insert 45 | DN20 |
| M36x2-16 | 202347 | 28Lf sw ORING X 1 Hose insert 45 | DN25 |
| M45x2-20 | 202349 | 35Lf sw ORING X 1.1/4 Hose insert 45 | DN32 |
| M52x2-24 | 207974 | 42Lf sw ORING X 1.1/2 Hose insert 45 | DN40 |
