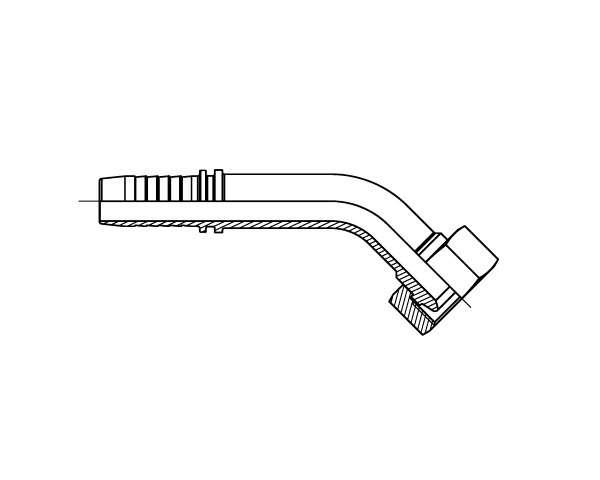

Metric Heavy (S) Female Swivel – Hosetail 45
| Dash | Volz | Description | DIN |
|---|---|---|---|
| M18x1.5-4 | 208116 | 10Sf sw X 1/4 Hose insert 45 | DN06 |
| M20x1.5-6 | 208119 | 12Sf sw X 3/8 Hose insert 45 | DN06 |
| M20x1.5-5 | 208118 | 12Sf sw X 5/16 Hose insert 45 | DN10 |
| M22x1.5-6 | 208120 | 14Sf sw X 3/8 Hose insert 45 | DN08 |
| M24x1.5-8 | 208121 | 16Sf sw X 1/2 Hose insert 45 | DN10 |
| M30x2-10 | 208122 | 20Sf sw X 5/8 Hose insert 45 | DN12 |
| M36x2-16 | 208124 | 25Sf sw X 1 Hose insert 45 | DN16 |
| M36x2-12 | 208123 | 25Sf sw X 3/4 Hose insert 45 | DN25 |
| M42x2-16 | 208125 | 30Sf sw X 1 Hose insert 45 | DN20 |
| M52x2-20 | 208126 | 38Sf sw X 1.1/4 Hose insert 45 | DN25 |
