Volz	Article No	Dash
204022	7/16 JICf HEX CAP	-4
204021	1/2 JICf HEX CAP	-5
204020	9.16 JICf HEX CAP	-6
204019	3/4 JICf HEX CAP	-8
204018	7/8 JICf HEX CAP	-10
204017	1.1/16 JICf HEX CAP	-12
204016	1.5/16 JICf HEX CAP	-16
204015	1.5/8 JICf HEX CAP	-20
204014	1.7/8 JICf HEX CAP	-24
204013	2.1/2 JICf HEX CAP	-32

Volz	Article No	Dash
223262	1/4 JIC Female X 1/4 Tube Weld	-4-4
223263	3/8 JIC Female X 1/4 Tube Weld	-6-4
223264	3/8 JIC Female X 3/8 Tube Weld	-6-6
223265	1/2 JIC Female X 3/8 Tube Weld	-8-6
223266	1/2 JIC Female X 1/2 Tube Weld	-8-8
223267	5/8 JIC Female X 1/2 Tube Weld	-10-8
223268	3/4 JIC Female X 3/4 Tube Weld	-12-12
223269	1 JIC Female X 1 Tube Weld	-16-16
223270	1.1/4 JIC Female X 1.1/4 Tube Weld	-20-20
223271	1.1/2 JIC Female X 1.1/2 Tube Weld	-24-24
223272	2 JIC Female X 2 Tube Weld	-32-32

Volz	Article No	Dash
241842	7/16 JIC X 7/16 JIC FM Test Point	-4-4
241843	9/16 JIC X 9/16 JIC FM Test Point	-6-6
241844	3/4 JIC X 3/4 JIC FM Test Point	-8-8
241845	7/8 JIC X 7/8 JIC FM Test Point	-10-10
241846	1.1/16 JIC X 1.1/16 JIC FM Test Point	-12-12
241847	1.5/16 JIC X 1.5/16 JIC FM Test Point	-16-16

Volz	Article No	Dash
204089	7/16 JIC PLUG	-4
204090	1/2 JIC PLUG	-5
204091	9/16 JIC PLUG	-6
204092	3/4 JIC PLUG	-8
204093	7/8 JIC PLUG	-10
204094	1.1/16 JIC PLUG	-12
204095	1.5/16 JIC PLUG	-16
204096	1.5/8 JIC PLUG	-20
204097	1.7/8 JIC PLUG	-24
204098	2.1/2 JIC PLUG	-32

Volz	Article No	Tube Size
Volz	Article No	mm	Inch
203436	1/4 JIC TUBE SLEEVE		1/4
203437	5/16 JIC TUBE SLEEVE		5/16
203438	3/8 JIC TUBE SLEEVE		3/8
203439	1/2 JIC TUBE SLEEVE		1/2
203440	5/8 TUBE SLEEVE		5/8
203441	3/4 TUBE SLEEVE		3/4
203442	1 JIC TUBE SLEEVE		1
203443	1.1/4 JIC TUBE SLEEVE		1.1/4
203444	1.1/2 JIC TUBE SLEEVE		1.1/2
203445	2 JIC TUBE SLEEVE		2
203409	7/16 JIC TUBE NUT	6	1/4
203410	1/2 JIC TUBE NUT	8	5/16
203411	9/16 JIC TUBE NUT	10	3/8
203412	3/4 JIC TUBE NUT	12	1/2
203413	7/8 JIC TUBE NUT	14,15,16	5/8
203414	1.1/16 JIC TUBE NUT	18	3/4
134718	1.1/16 JIC TUBE NUT	20
203415	1.5/16 JIC TUBE NUT	22,25	1
203416	1.5/8 JIC TUBE NUT	28,30
134722	1.5/8 JIC TUBE NUT	32	1.1/4
203417	1.7/8 JIC TUBE NUT	35,38	1.1/2
203418	2.1/2 JIC TUBE NUT	50	2.1/2
203419	M X 06 - JIC TUBE SLEEVE	6
203420	M X 08 - JIC TUBE SLEEVE	8
203421	M X 10 - JIC TUBE SLEEVE	10
203422	M X 12 - JIC TUBE SLEEVE	12
203423	M X 14 - JIC TUBE SLEEVE	14
203424	M X 15 - JIC TUBE SLEEVE	15
203425	M X 16 - JIC TUBE SLEEVE	16
203426	M X 18 - JIC TUBE SLEEVE	18
203427	M X 20 - JIC TUBE SLEEVE	20
203428	M X 22 - JIC TUBE SLEEVE	22
203429	M X 25 - JIC TUBE SLEEVE	25
203430	M X 28 - JIC TUBE SLEEVE	28
203431	M X 30 - JIC TUBE SLEEVE	30
203432	M X 32 - JIC TUBE SLEEVE	32
203433	M X 35 - JIC TUBE SLEEVE	35
203434	M X 38 - JIC TUBE SLEEVE	38
203435	M X 50 - JIC TUBE SLEEVE	50

Volz	Article No	Dash
204137	7/16 JICf sw X 7/16 JICf sw	-4-4
204138	1/2 JICf sw X 1/2 JICf sw	-5-5
204139	9/16 JICf sw X 9/16 JICf sw	-6-6
204140	3/4 JICf sw X 3/4 JICf sw	-8-8
204141	7/8 JICf sw X 7/8 JICf sw	-10-10
204142	1.1/16 JICf sw X 1.1/16 JICf sw	-12-12
204143	1.5/16 JICf sw X 1.5/16 JICf sw	-16-16
204144	1.5/8 JICf sw X 1.5/8 JICf sw	-20-20
204145	1.7/8 JICf sw X 1.7/8 JICf sw	-24-24

Volz	Article No	Dash
207471	7/16 JICf sw X 1/8 NPT	-4-2
207472	7/16 JICf sw X 1/4 NPT	-4-4
215526	7/16 JICf sw X 3/8 NPT	-4-6
207473	1/2 JICf sw X 1/8 NPT	-5-2
207474	1/2 JICf sw X 1/4 NPT	-5-4
215527	1/2 JICf sw X 3/8 NPT	-5-6
215528	9/16 JICf sw X 1/8 NPT	-6-2
207475	9/16 JICf sw X 1/4 NPT	-6-4
207476	9/16 JICf sw X 3/8 NPT	-6-6
215529	9/16 JICf sw X 1/2 NPT	-6-8
207477	3/4 JICf sw X 1/4 NPT	-8-4
207478	3/4 JICf sw X 3/8 NPT	-8-6
207479	3/4 JICf sw X 1/2 NPT	-8-8
215530	3/4 JICf sw X 3/4 NPT	-8-12
207480	7/8 JICf sw X 3/8 NPT	-10-6
207481	7/8 JICf sw X 1/2 NPT	-10-8
215531	7/8 JICf sw X 3/4 NPT	-10-12
207482	1.1/16 JICf sw X 1/2 NPT	-12-8
207483	1.1/16 JICf sw X 3/4 NPT	-12-12
215532	1.1/16 JICf sw X 1 NPT	-12-16
215533	1.5/16 JICf sw X 1/2 NPT	-16-8
207487	1.5/8 JICf sw X 1.1/2 NPT	-20-24
215536	1.7/8 JICf sw X 1.1/4 NPT	-24-20
215537	1.7/8 JICf sw X 1.1/2 NPT	-24-24

Volz	Article No	Dash
223262	7/16 JIC X 1/4 Tube/Butt Weld	-4-4
223263	9/16 JIC X 1/4 Tube/Butt Weld	-6-4
223264	9/16 JIC X 3/8 Tube/Butt Weld	-6-6
223265	3/4 JIC X 3/8 Tube/Butt Weld	-8-6
223266	3/4 JIC X 1/2 Tube/Butt Weld	-8-8
223267	7/8 JIC X 1/2 Tube/Butt Weld	-10-8
223268	1.1/16 JIC X 3/4 Tube/Butt Weld	-12-12
223269	1.5/16 JIC X 1 Tube/Butt Weld	-16-16
223270	1.5/8 JIC X 1.1/4 Tube/Butt Weld	-20-20
223271	1.7/8 JIC X 1.1/2 Tube/Butt Weld	-24-24
223272	2.1/2 JIC X 2 Tube/Butt Weld	-32-32

Volz	Article No	Dash
242058	7/16 JIC - M 10 x 1 WD	-4	M10x1WD
242056	7/16 JIC - M 12 x 1,5 WD	-4	M12x1.5WD
242288	9/16 JIC - M 12 x 1,5 WD	-6	M12x1.5WD
212060	9/16 JIC - M 14 x 1,5 WD	-6	M14x1.5WD
232675	9/16 JIC - M 16 x 1,5 WD	-6	M16x1.5WD
233101	3/4 JIC - M 18 x 1,5 WD	-8	M18x1.5WD
235357	7/8 JIC - M 22 x 1,5 WD	-10	M22x1.5WD
230921	1.1/16 JIC - M 27 x 2 WD	-12	M27x2WD

Volz	Article No	Dash
124222	1/8 NPT X 1/8 NPT	-2-2
212826	1/4 NPT X 1/8 NPT	-4-2
203260	1/4 NPT X 1/4 NPT	-4-4
212827	3/8 NPT X 1/4 NPT	-6-4
202641	3/8 NPT X 3/8 NPT	-6-6
212828	1/2 NPT X 1/4 NPT	-8-4
212829	1/2 NPT X 3/8 NPT	-8-6
201558	1/2 NPT X 1/2 NPT	-8-8
212830	3/4 NPT X 1/2 NPT	-12-8
203817	3/4 NPT X 3/4 NPT	-12-12
212831	1 NPT X 3/8 NPT	-16-6
212832	1 NPT X 1/2 NPT	-16-8
212833	1 NPT X 3/4 NPT	-16-12
124224	1 NPT X 1 NPT	-16-16
203816	1.1/4 NPT X 1.1/4 NPT	-20-20
124223	1.1/2 NPT X 1.1/2 NPT	-24-24
203815	2 NPT X 2 NPT	-32-32

Volz	Article No	Dash
125303	1/8 NPTf FIXED TEE	-2-2-2
125304	1/4 NPTf FIXED TEE	-4-4-4
125305	3/8 NPTf FIXED TEE	-6-6-6
125306	1/2 NPTf FIXED TEE	-8-8-8
125307	3/4 NPTf FIXED TEE	-12-12-12
125308	1 NPTf FIXED TEE	-16-16-16

Volz	Article No	Dash
125562	1/8 NPT TEE	-2-2-2
125563	1/4 NPT TEE	-4-4-4
125569	3/8 NPT TEE	-6-6-6
125564	1/2 NPT TEE	-8-8-8
125565	3/4 NPT TEE	-12-12-12
125566	1 NPT TEE	-16-16-16
125567	1.1/4 NPT TEE	-20-20-20
125568	1.1/2 NPT TEE	-24-24-24
126569	2 NPT TEE	-32-32-32

Volz	Article No	Size	Material
ODR 4 x 1,5	103343	6 L/S	VITON
ODR 6 x 1,5	103347	8 L/S	VITON
ODR 7,5 x 1,5	103352	10 L/S	VITON
ODR 9 x 1,5	103357	12 L/S	VITON
ODR 12 x 2	103369	15 L	VITON
ODR 13,5 x 2	103374	16 S	VITON
ODR 15 x 2	103378	18 L	VITON
ODR 20 x 2	103391	22 L	VITON
ODR 26 x 2	103401	28 L	VITON
ODR 32 x 2,5	103410	35 L	VITON
ODR 38 x 2,5	103415	42 L	VITON
ODR 10 x 2	103365	14 S	VITON
ODR 16,3 x 2,4	103382	20 S	VITON
ODR 20,3 x 2,4	103392	25 S	VITON
ODR 25,3 x 2,4	103399	30 S	VITON
ODR 33,3 x 2,4	103411	38 S	VITON

Volz	Article No	Dash
124233	1/8 NPT X 1/8 NPT FM SOCKET	-2-2
124234	1/4 NPT X 1/4 NPT FM SOCKET	-4-4
124235	3/8 NPT X 3/8 NPT FM SOCKET	-6-6
115702	1/2 NPT X 1/2 NPT FM SOCKET	-8-8
124236	3/4 NPT X 3/4 NPT FM SOCKET	-12-12
124237	1 NPT X 1 NPT FM SOCKET	-16-16
125208	1.1/4 NPT X 1.1/4 NPT FM SOCKET	-20-20
125209	1.1/2 NPT X 1.1/2 NPT FM SOCKET	-24-24
125210	2 NPT X 2 NPT FM SOCKET	-32-32

Volz	Article No	Dash
212856	1/8 NPT X 1/8 NPTf	-2-2
212857	1/8 NPT X 1/4 NPTf	-2-4
212858	1/8 NPT X 3/8 NPTf	-2-6
212859	1/8 NPT X 1/2 NPTf	-2-8
124225	1/4 NPT X 1/8 NPTf	-4-2
124226	1/4 NPT X 1/4 NPTf	-4-4
212860	1/4 NPT X 3/4 NPTf	-4-12
212861	3/8 NPT X 1/8 NPTf	-6-2
124227	3/8 NPT X 1/4 NPTf	-6-4
124228	1/2 NPT X 1/4 NPTf	-8-4
124229	1/2 NPT X 3/8 NPTf	-8-6
222005	1/2 NPT X 3/4 NPTf	-8-12
117785	3/4 NPT X 3/8 NPTf	-12-6
124230	3/4 NPT X 1/2 NPTf	-12-8
222006	3/4 NPT X 1 NPTf	-12-16
124231	1 NPT X 3/8 NPTf	-16-6
212238	1 NPT X 1/2 NPTf	-16-8
124232	1 NPT X 3/4 NPTf	-16-12
207811	1.1/4 NPT X 1.1/4 NPTf	-20-20
207812	1.1/2 NPT X 1 NPTf	-24-16
204076	1.1/2 NPT X 1.1/4 NPTf	-24-20
207814	1.1/2 NPT X 1.1/2 NPTf	-24-24

Volz	Article No	Dash
212682	1/4 NPT X 1/4 NPTf FIXED 90 ELBOW	-4-4
212841	1/2 NPT X 1/2 NPTf FIXED 90 ELBOW	-8-8
212681	3/8 NPT X 3/8 NPTf FIXED 90 ELBOW	-6-6
212842	3/4 NPT X 3/4 NPTf FIXED 90 ELBOW	-12-12
212843	1 NPT X 1 NPTf FIXED 90 ELBOW	-16-16
212844	1.1/4 NPT X 1.1/4 NPTf FIXED 90 ELBOW	-20-20

Volz	Article No	Dash
204515	1/8 NPT HEX CAP	-2
204516	1/4 NPT HEX CAP	-4
204517	3/8 NPT HEX CAP	-6
204518	1/2 NPT HEX CAP	-8
204519	3/4 NPT HEX CAP	-12
204520	1 NPT HEX CAP	-16
204521	1.1/4 NPT HEX CAP	-20
204522	1.1/2 NPT HEX CAP	-24

Volz	Article No	Dash
105377	1/8 NPT HEX PLUG	-2
105375	1/4 NPT HEX PLUG	-4
105383	3/8 NPT HEX PLUG	-6
105373	1/2 NPT HEX PLUG	-8
105381	3/4 NPT HEX PLUG	-12
105371	1 NPT HEX PLUG	-16
105387	1.1/4 NPT HEX PLUG	-20
105379	1.1/2 NPT HEX PLUG	-24
105385	2 NPT HEX PLUG	-32

Volz	Article No	Dash
125266	1/8 NPT X 1/8 NPTf FIXED 90 ELBOW	-2-2
125267	1/4 NPT X 1/4 NPTf FIXED 90 ELBOW	-4-4
125268	3/8 NPT X 3/8 NPTf FIXED 90 ELBOW	-6-6
125269	1/2 NPT X 1/2 NPTf FIXED 90 ELBOW	-8-8
125270	3/4 NPT X 3/4 NPTf FIXED 90 ELBOW	-12-12
125284	1 NPT X 1 NPTf FIXED 90 ELBOW	-16-16

Volz	Article No	Dash
210511	5/16 UNO HEX PLUG	-3
204499	7/16 UNO HEX PLUG	-4
204500	1/2 UNO HEX PLUG	-5
204501	9/16 UNO HEX PLUG	-6
204502	3/4 UNO HEX PLUG	-8
204503	7/8 UNO HEX PLUG	-10
204504	1.1/16 UNO HEX PLUG	-12
204506	1.3/16 UNO HEX PLUG	-14
204505	1.5/16 UNO HEX PLUG	-16
204508	1.5/8 UNO HEX PLUG	-20
204507	1.7/8 UNO HEX PLUG	-24
204509	2.1/2 UNO HEX PLUG	-32

Volz	Article No	Dash
242047	5/16 UNO HEX PLUG	-3
242048	3/8 UNO In-hex Plug	-6
241644	7/16 UNO HEX PLUG	-7
241645	9/16 UNO HEX PLUG	-9
241646	3/4 UNO HEX PLUG	-12
241647	7/8 UNO HEX PLUG	-14
241648	1.1/16 UNO HEX PLUG	-17
241649	1.5/16 UNO HEX PLUG	-19

Volz	Article No	Other Code
VSCHM10x1WD	105396	VSTI10x1ED
VSCHM12x1.5WD	105398	VSTI12x1.5ED
VSCHM14x1.5WD	105400	VSTI14x1.5ED
VSCHM16x1.5WD	105402	VSTI16x1.5ED
VSCHM18x1.5WD	105404	VSTI18x1.5ED
VSCHM20x1.5WD	105406	VSTI20x1.5ED
VSCHM22x1.5WD	105408	VSTI22x1.5ED
VSCHM26x1.5WD	105410	VSTI26x1.5ED
VSCHM27x2WD	125136	VSTI27x2ED
VSCHM33x2WD	105414	VSTI33x2ED
VSCHM42x2WD	105416	VSTI42x2ED
VSCHM48x2WD	105418	VSTI48x2ED

Volz	Article No	Series
VSTO-OD 06 L	204416	L
VSTO-OD 08 L	204417	L
VSTO-OD 10 L	204418	L
VSTO-OD 12 L	204419	L
VSTO-OD 15 L	204420	L
VSTO-OD 18 L	204421	L
VSTO-OD 22 L	204422	L
VSTO-OD 28 L	204423	L
VSTO-OD 35 L	204424	L
VSTO-OD 42 L	204425	L
VSTO-OD 06 S	204426	S
VSTO-OD 08 S	204427	S
VSTO-OD 10 S	204428	S
VSTO-OD 12 S	204429	S
VSTO-OD 14 S	204430	S
VSTO-OD 16 S	204431	S
VSTO-OD 20 S	204432	S
VSTO-OD 25 S	204433	S
VSTO-OD 30 S	204434	S
VSTO-OD 38 S	204435	S

JIC Female Cap

JIC Female Swivel Tube Weld

JIC Female Swivel Tube Weld

JIC Male Female Inline Test 20

JIC Male Female Inline Test Point

JIC Plug

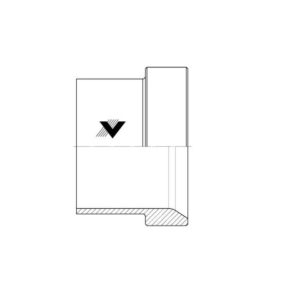

JIC Tube Nut + Sleeve

JICf sw – JICf sw Adaptor

JICf sw – NPT Adaptor

JICf Swivel – Tube/Butt Weld

Metric Port – JIC

NPT – NPT 90 ELBOW

NPT – NPT Adaptor

NPT – NPT Socket

NPT – NPTf Adaptors

NPT – NPTf FIXED 90 ELBOW

NPT FIXED FEMALE TEE

NPT Hex Cap

NPT Hex Plug

NPT TEE

NPTf – NPTf FIXED 90 ELBOW

ODR – Viton O-Ring

UNO – O-Ring Boss Hex Plug

UNO (Oring Boss) In-Hex Plug

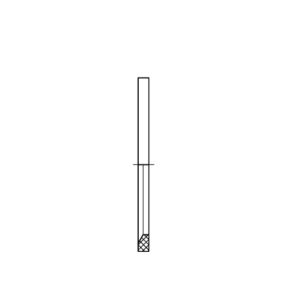

VSCH – Metric Plug wd seal

VSTO – Din 2352 Cap

VSTO – Din 2352 Cap With O-Ring

VSTO – Din 2352 Plug Insert Only

WD – BSPP Encapsulated Seal

WD – Metric Encapsulated Seal

Volz	Article No	Series
VSTO-OD 06 L	204436	L
VSTO-OD 08 L	204437	L
VSTO-OD 10 L	204438	L
VSTO-OD 12 L	204439	L
VSTO-OD 15 L	204440	L
VSTO-OD 18 L	204441	L
VSTO-OD 22 L	204443	L
VSTO-OD 28 L	204444	L
VSTO-OD 35 L	204445	L
VSTO-OD 42 L	204446	L
VSTO-OD 06 S	204450	S
VSTO-OD 08 S	206571	S
VSTO-OD 10 S	206573	S
VSTO-OD 12 S	206574	S
VSTO-OD 14 S	206575	S
VSTO-OD 16 S	206576	S
VSTO-OD 20 S	206577	S
VSTO-OD 25 S	206578	S
VSTO-OD 30 S	206579	S
VSTO-OD 38 S	206580	S

Volz	Article No	Series
VSTO-OD 06 L	105461	L
VSTO-OD 08 L	105464	L
VSTO-OD 10 L	105467	L
VSTO-OD 12 L	105469	L
VSTO-OD 15 L	105473	L
VSTO-OD 18 L	105477	L
VSTO-OD 22 L	105481	L
VSTO-OD 28 L	105485	L
VSTO-OD 35 L	105489	L
VSTO-OD 42 L	105493	L
VSTO-OD 06 S	105461	S
VSTO-OD 08 S	105464	S
VSTO-OD 10 S	105467	S
VSTO-OD 12 S	105469	S
VSTO-OD 14 S	105471	S
VSTO-OD 16 S	105475	S
VSTO-OD 20 S	105479	S
VSTO-OD 25 S	105483	S
VSTO-OD 30 S	105487	S
VSTO-OD 38 S	105491	S

Volz	Article No
WD-R-1/8	114861
WD-R-1/4	105522
WD-R-3/8	105533
WD-R-1/2	105531
WD-R-3/4	105527
WD-R-1	105528
WD-R-11/4	105529
WD-R-11/2	105530

Volz	Article No
M8x1.0	105519
M10x1.0	114861
M12x1.5	105521
M14x1.5	105522
M16x1.5	105523
M18x1.5	105524
M20x1.5	105525
M22x1.5	105526
M26x1.5	105527
M33x2.0	105528
M42x2.0	105529
M48x2.0	105530
